Thermocouple Amplifier Single Channel Kit with Stinger EGT Probe.

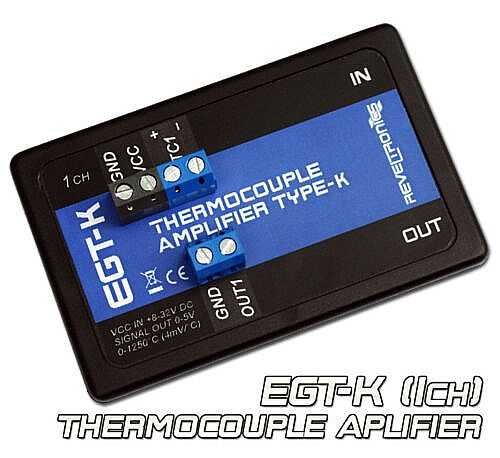

The Reveltronics Signal Converter takes any Type "K" Thermocouple(Ungrounded or Exposed Junction) and converts its signal to 0-5volt output.

The Kit Includes (1) WORLD FAMOUS "Stinger HYPER RESPONSE" EGT Probe w/ Stainless Weld-on Mounting Hardware!

**Stinger EGT sensor has a 72"inch wire length, exposed tip w/ Stainless steel Weld-On Hardware.

***Enclosed Tip Sensors or Clamp-On Mounting Options are Available***

Converter Spec's:

• (1) Channel for Type "K" Thermocouple. (T/C Included)
• Cold junction compensation.(uses any length wire)
• Recommended Input Voltage +8V to 32V DC.
• Output is 4mv/°C / 0°C = 0v to 1250°C = 5.0v
• Temperature Range 0C - 1250C or 32F - 2282F
• Compact and easy to install w/ Velcro or Screw Mount at the 4 corners.

Most Dataloggers like AEM EMS, Greddy EManage, Motec, Stack, ACR, HRC, Many Dyno's & Industrial Applications have provisions for 0-5v inputs, this device solves the problem with interpreting the thermocouple's millivolt signal.

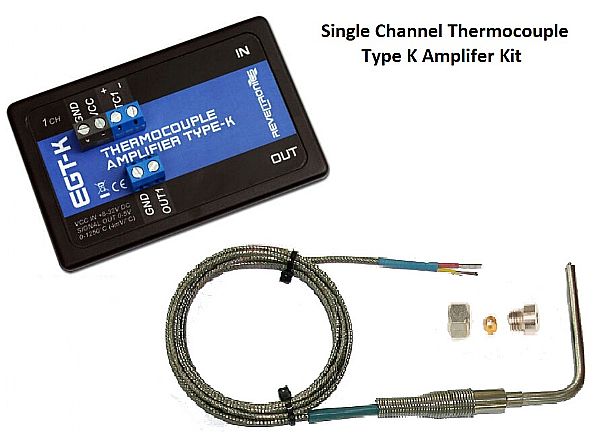

This Kit Includes:

• (1) Single Channel Thermocouple Converter 0-5v
• (1) 3/16" Stinger EGT Sensor w/ 72" wire length w/ Stainless Weld-On mounting hardware (1/4" Sensors Optional).
• (1) Install Instructions

If you have any questions feel free to contact EGT @1-800-348-4678
