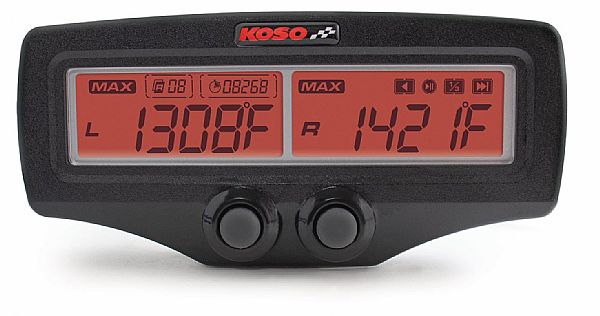

Continuing with the evolution of our dual EGT-02 meter, Koso is proud to offer the dual EGT-02R with RPM and Water Temperature. This meter allows you to tune the engine more precisely and prevent engine damages. The settable warning and maximum recall functions for both EGT, RPM and Water temperature are easy to use and show you vital engine information. The color-changing backlight makes it very easy to see even at night. This cool instrument can save your engine from expensive repairs!

The settable warning for each cylinder gives you the opportunity to set a maximum temperature warning of up to 2,100 °F. The red flashing of the screen makes it very easy to see if something is going wrong with the engine. This Gauge could save your motor!

Specifications (R= Range U=Unit)

Digital EGT temperature A/B R: 250 ~ 2,100 °F (100 ~ 1,200 °C) U: 1 °F or °C (alternative)


Over EGT temperature warning R: 392 ~ 2,100 °F (200 ~ 1,200 °C) U: 1 °F (°C)


Max EGT temp. record R: 250 ~ 2,100 °F (100 ~ 1,200 °C) U: 1 °F (°C)

Volt meter R: DC 0.8 ~ 18 V | U: DC 0.1 V

Volt meter warning R: low voltage: DC 8.0 ~ 13.0 V R: high voltage: DC 13.0 ~ 16.0 V

RPM R: 0 ~ 15,000 RPM

RPM input signal number setting R: 0.5, 1 , 1.5, 2, 2.5, 3~ 24

RPM input pulse R: HI‑ACT (positive wave pulse) LO‑ACT (negative wave pulse)

RPM warning / shift‑light R: 1,000 ~ 15,000 RPM | U: 100 RPM

Max RPM record R: 1,000 ~ 15,000 RPM

Water temperature 32 ~ 482 °F (0 ~ 250 °C) U: 1 °F or °C (alternative)

Water temperature warning R: 140 ~ 482 °F (60 ~ 250 °C)

Max Water temperature record R: 140 ~ 482 °F (60 ~ 250 °C)

Backlight brightness R: 1/5(Darkest) ~ 5/5(Brightest)

Max recorded runs: 50 runs

Recording time R: 99’59’’99 seconds | TR: approx 3.18 Hr

Play mode speed 1 x play / pause | 3 x play / pause 1/3 x play / pause | 1 x rewind / pause

Top temperature range R: 250 ~ 2,100 °F (100 ~ 1,200 °C) U: 1 °F (°C)

Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)

Effective voltage AC/DC 12V

Sensor included EGT Standard: 28-CKTYPE9 (Clamp-on or Weld-on Hardware)
