Like it’s name suggest, this is an evolution of our original dual exhaust temperature meter. This new meter allows you to tune your engine more precisely and keep a record of your previous runs (up to 50).
The settable warning for each cylinder gives you the opportunity to set a maximum temperature warning of up to 2,100 °F.

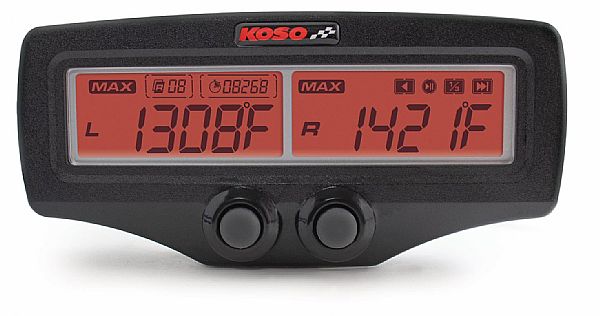

The red flashing of the screen makes it very easy to see if something is going wrong with the engine. This Gauge could save your motor!

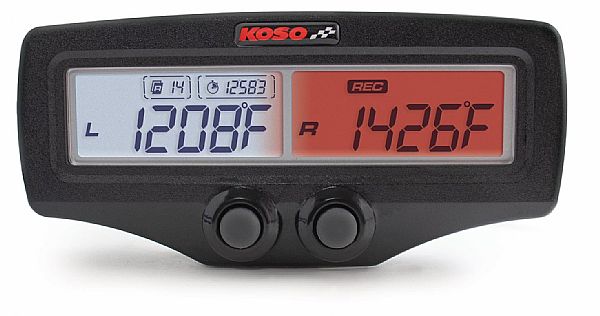

EGT-02 EVO Dual Exhaust Gas Temp Data Logger with FAST Probe's
Specifications (R= Range U=Unit)
- Digital EGT temperature A/B
R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
U: 1 °F or °C (alternative)
- Over EGT temperature warning
R: 392 ~ 2,100 °F (200 ~ 1,200 °C)
U: 1 °F (°C)
- Max EGT temp. record
R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
U: 1 °F (°C)
- Volt meter
R: DC 0.8 ~ 18 V | U: DC 0.1 V
- Volt meter warning
R: low voltage: DC 8.0 ~ 13.0 V
R: high voltage: DC 13.0 ~ 16.0 V
- Backlight brightness
R: 1/5(Darkest) ~ 5/5(Brightest)
- Max recorded runs: 50 runs
- Recording time
R: 99’59’’99 seconds | TR: approx 3.18 Hr
- Play mode speed
1 x play / pause | 3 x play / pause
1/3 x play / pause | 1 x rewind / pause
- Top temperature range
R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
U: 1 °F (°C)
- Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
- Effective voltage
AC/DC 12V
- Sensor included
EGT FAST Probe: 28-CKTYPEX (Clamp-on or Weld-on Hardware)
|
