| PL-1: Pocket Logger, Innovate MTS Datalogger |
 IN-3875 |
 1 LBS. |
|
|
|

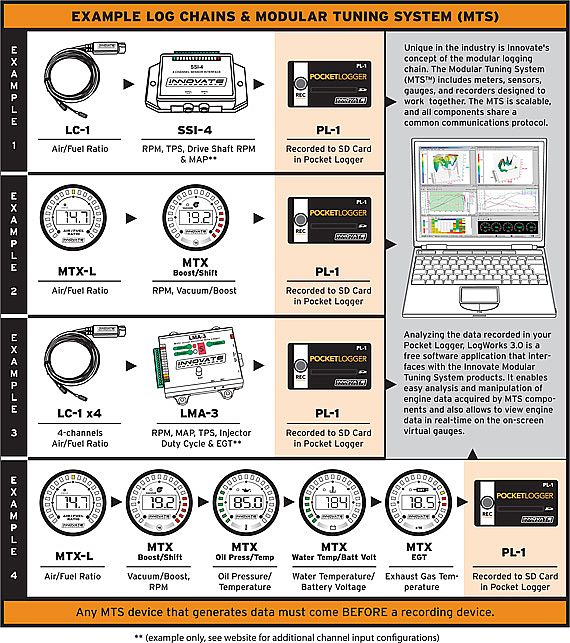

The PL-1 is the latest in Innovate Motorsports’ line-up of products to allow for easy data logging of your MTS (Modular Tuning System) compatible product. Whether you have an LC-2 & SSI-4, MTX gauges, or any other combination of Innovate Motorsports MTS devices, the PL-1 integrates seamlessly to record all the data from the connected devices.
- Record up to 32-channels of Innovate MTS compatible devices
- Sample rate of 12 times per second
- Log directly to SD card (included) 2GB SD = 580 hours of recording!
- Playback log data with powerful LogWorks software (available for download)

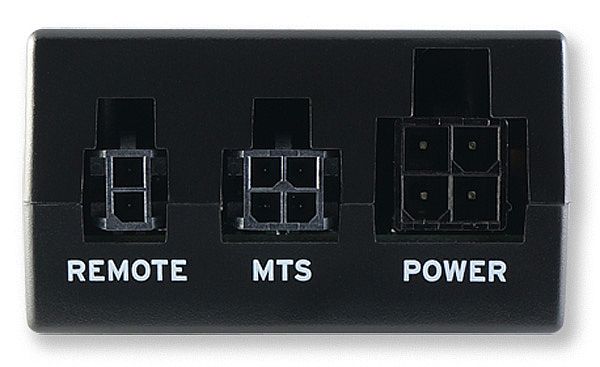

- Positive lock connectors for all connections
- Innovate MTS serial IN
- Trigger recording on PL-1 and/or with "optional" remote push button (coming soon)
Specifications:
Power
- Operating Voltage 12V to 18V DC
- Input Current, Operating 200mA
Temperature
- Operating 0°C to 70°C (32°F to 158°F)
Inputs
- Serial IN Innovate MTS Compatible
Recording
- SD Memory Card 17 Minutes Per MB (1024 MB in 1 GB)
- Card Format FAT 16 & FAT 32
- Recording Sample Rate 12 Sa/S
General
- Dimensions 2.2" x 1" x 1.8"
- Weight 0.10 lb
Complete Kit Includes:
- PL-1, Pocket Logger
- 2GB SD Memory Card
- SD Memory Card Reader, USB to PC
- Power Cable, 12v
- LogWorks 3.0 Software, available for download (CD not included)
- MTS Patch Cable, Locking 4-pin to 4-pin, for newer devices like the MTX gauges
- MTS Patch Cable, 2.5mm to 4-pin, needed for LC-1, LC-2, SSI-4, TC-4, & LMA-3
|
|
|
